LHC Standard: LHC 48b standard - 2024
Intensity
Showing intensity after injection and before extraction.
Nxcals variables: PR.DCAFTINJ_1:INTENSITY, PR.DCBEFEJE_1:INTENSITY.
Transmission
Showing transmission as follows:
-
PS Ring transmission: ratio between intensity after injection for both batches (PR.DCAFTINJ_2) and intensity before extraction (PR.DCBEFEJE_1).
-
Extraction efficiency: ratio between intensity in the last BCT of the line and intensity in the ring before extraction: F16.BCT.212 / PR.DCBEFEJE_1:INTENSITY
- Overall transmission: the ratio between intensity in the last BCT of the line and intensity after injection of both batches: F16.BCT.212 / PR.DCAFTINJ_1:INTENSITY.
Data is filtered so only values between 0 and 150 % are shown.
The normalised transmission is shown in the second plot:
-
PS Ring transmission - Normalised: extraction/injection / PR.DCAFTINJ_1:INTENSITY.
-
Extraction efficiency - Normalised: Extraction efficiency / PR.DCBEFEJE_1:INTENSITY.
- Overall transmission - Normalised: Overall transmission / PR.DCAFTINJ_1:INTENSITY.
Bunch length
Showing the bunch length, with mean and standard deviation, and the intensity per bunch.
Nxcals variables: PS-LOG-BQM-UCAP:Quality:avgBunchLength_ns, PS-LOG-BQM-UCAP:Quality:numberOfBunches,
PR.DCBEFEJE_1:INTENSITY
TT2 trajectories
Showing horizontal trajectories in TT2.
Data from UCAP: PS.F16.PROC.BPMALPS.
Showing vertical trajectories in TT2.
Data from UCAP: PS.F16.PROC.BPMALPS.
Showing cumulative losses in the cycle.
UCAP: PS.RING.PROC.BLM_HOTSPOTS.
Limitation Diagram

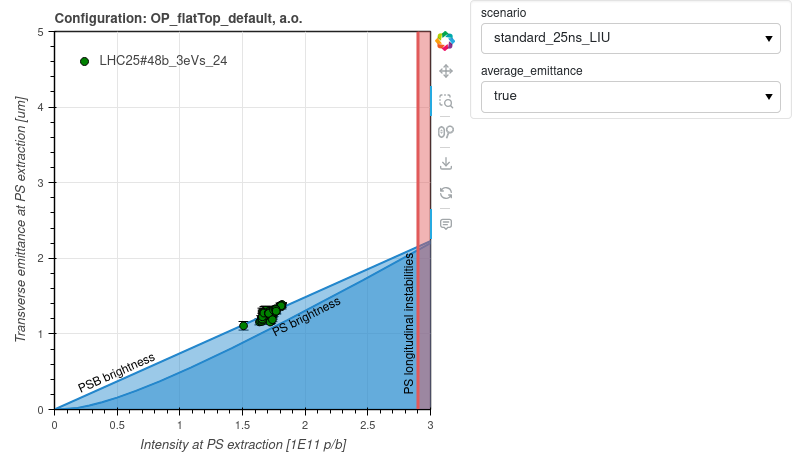

BCMS limitation diagram before PS extraction and corresponding emittance data obtained since the start of the 2024 LHC physics run. To compare to pre-LS2 excluded areas, select the corresponding scenario from the dropdown menu.
Transverse emittance evolution

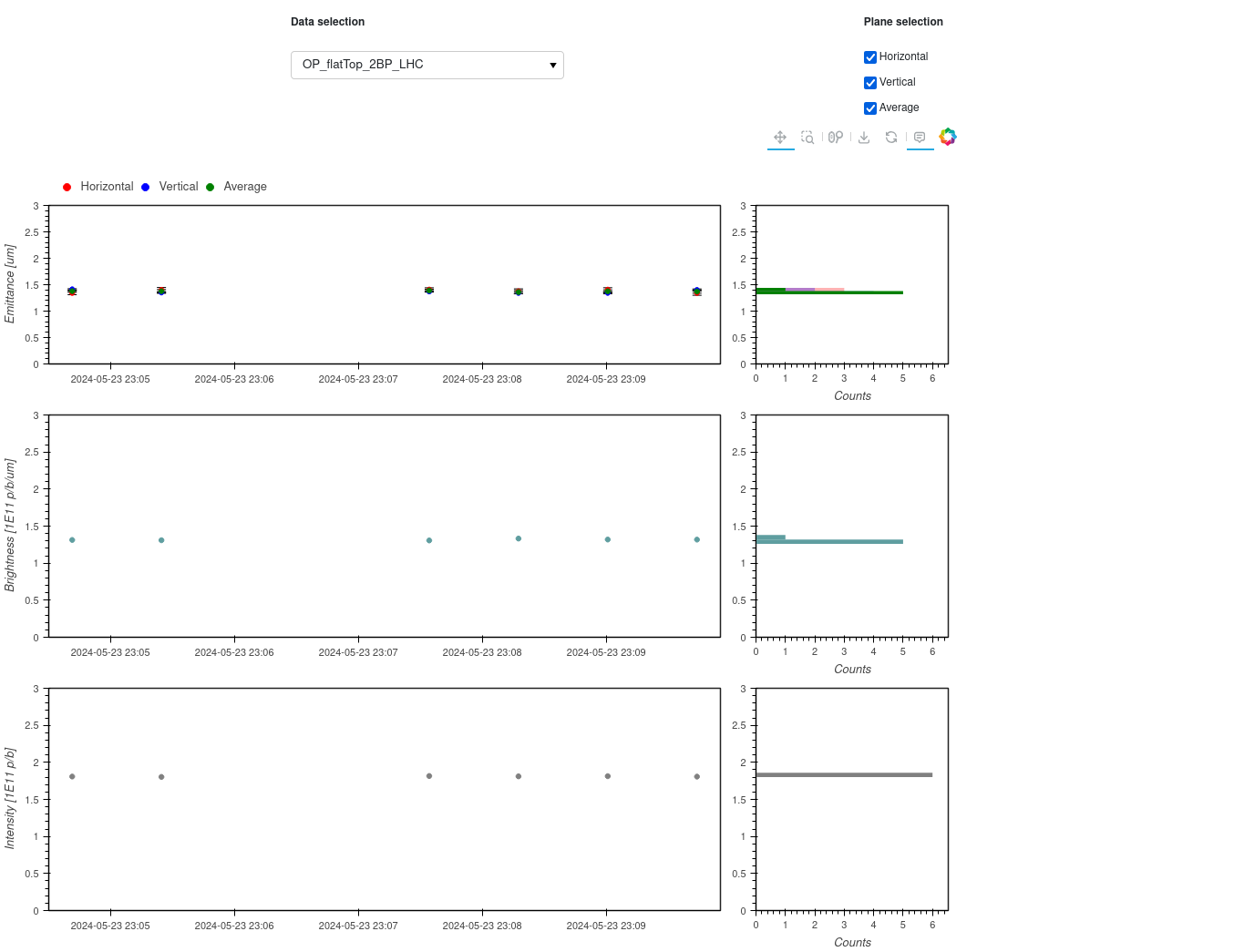

Showing the transverse emittance measured with the wire scanners since the beginning of the 2024 LHC physics run. Emittance measurements take place every day and, if time permits, before every LHC fill.
